How to Prepare Your Garden for a Wood-Fired Hot Tub: Foundations, Space & Drainage

Why Preparation Matters More Than You Think

A wood-fired hot tub filled with water and occupied by several adults is a serious structure. The Amber 200, for example, holds approximately 1,200 litres of water. Add the weight of the tub itself and two to four adults, and you are placing somewhere between 1,800 and 2,200 kg on a single point of your garden. That is the equivalent of parking a small car in one spot — permanently, in all weather conditions, through freeze-thaw cycles, rainfall, and summer heat.

A surface that looks solid in summer can shift, crack, or sink over winter. A drain that seems unnecessary on a dry afternoon becomes essential the moment you need to empty 1,200 litres of water. Getting these fundamentals right before installation is far easier and cheaper than correcting them afterwards.

Step One: Choosing the Right Location

Before you think about foundations, you need to decide exactly where the tub will go. This decision affects everything that follows, so take your time with it.

Space Requirements

You need more room than just the footprint of the tub. As a minimum, allow:

• At least 50 cm of clearance on all sides of the tub for access, maintenance, and comfortable movement around it
• Extra clearance at the stove end — ideally 80–100 cm — so you can comfortably load wood and tend the fire without leaning over the edge
• Overhead clearance of at least 3 metres above the chimney outlet, free from overhanging branches, pergola roofing, or any other structure that could be affected by heat or smoke

For the Amber 225 (225 cm diameter), this means your prepared area should be at least 3.8–4 metres wide and long to feel comfortable in practice. A tight fit might look fine on paper but becomes frustrating when you are carrying firewood or stepping out of the tub on a dark winter evening.

Sun, Wind and Privacy

A south-facing spot with some natural wind shelter will reduce your heating time and improve your experience significantly. Wind strips heat from the water surface and makes the space feel less comfortable. A garden wall, timber screen, or dense hedge on the prevailing wind side makes a meaningful difference without creating the enclosed feel of a full shelter.

Avoid positioning the tub directly beneath deciduous trees. Falling leaves, bird droppings, and the sap residue that drips from certain trees will contaminate your water and require constant cleaning. Conifer trees cause particularly stubborn staining on fibreglass surfaces.

Distance from the House

Most people want their hot tub close enough to the house to be convenient, but not so close that chimney smoke drifts through open windows. A distance of five to ten metres tends to work well for most gardens. If you are installing electricity for the hydromassage, LED lighting, or antifrost system, you will need a cable run to this point — keep that in mind when choosing the location, as cable runs over ten metres become more complex and costly.

Step Two: Understanding Foundation Options

This is the most critical preparation decision you will make. The foundation must be:

• Level — to within 5 mm across the full footprint. Even a small slope puts uneven stress on the structural frame, causes the water to sit unevenly, and over time can distort the tub.
• Load-bearing — capable of supporting the full weight of the tub, water, and users without settlement
• Frost-resistant — stable through repeated freeze-thaw cycles, which can cause significant ground movement in Northern European winters
• Durable — lasting the full lifetime of the tub without requiring repair or rebuilding

There are three foundation types that work reliably. Each suits different garden situations.

Option 1: Compacted Gravel Base with Stone Slabs (Most Popular)

This is the most commonly used and most versatile foundation for a wood-fired hot tub. It is relatively straightforward to construct, performs well in all climates, and handles drainage naturally.

How to build it:

1. Mark and excavate the area to a depth of 20–25 cm, extending 30 cm beyond the planned footprint of the tub on all sides
2. Lay a weed membrane across the base and up the sides of the excavation to prevent plant growth
3. Fill with 15 cm of compacted hardcore (crushed stone or recycled concrete aggregate). Compact in layers of 5–7 cm using a plate compactor — do not try to compact the full depth at once
4. Add a 5 cm layer of sharp sand or fine gravel as a levelling bed
5. Lay 5–6 cm thick natural stone slabs or large-format porcelain paving, set on a mortar bed or on adjustable levelling feet for precise height control

The gravel layers provide excellent drainage — water flows down through the stone rather than pooling around the base of the tub. The slab surface provides a clean, stable, frost-resistant platform.

Cost estimate: €400–900 depending on the size of the area, slab choice, and whether you hire a contractor for the groundwork.

Option 2: Concrete Slab

A poured concrete slab is the most structurally robust option and the best choice if your soil has any history of instability, if you are in a region with very cold winters, or if you simply want a foundation that will never require any future attention.

Specification:

• Minimum thickness: 150 mm (15 cm) for a residential load of this type
• Concrete mix: C25/30 (standard structural mix) with steel mesh reinforcement
• The slab must extend at least 20 cm beyond the tub footprint on all sides
• Include a slight drainage fall of 1:100 (1 cm per metre) away from any buildings or fences — this prevents water pooling on the surface when you empty the tub or when rain falls
• Allow 28 days of curing time before placing the tub

One consideration: a solid concrete slab has no inherent drainage, which means you need to plan where water will go when you drain the tub. See the drainage section below.

Cost estimate: €600–1,400 depending on size and whether you lay it yourself or hire a contractor.

Option 3: Timber Decking (with Important Caveats)

A well-built timber deck can work as a hot tub base, and many homeowners prefer the aesthetic continuity it provides. However, it requires considerably more engineering than most people expect, and several important rules apply.

Structural requirements:

• The deck frame must be specifically engineered to carry the concentrated load of a full hot tub. Standard residential decking is built for distributed loads of 150–200 kg/m² — a hot tub imposes a point load several times higher. You will need doubled-up joists beneath the tub footprint, at minimum, and ideally a separate sub-frame designed for the weight
• Posts must sit on concrete pad foundations dug below the frost line for your region ( this means at least 80 cm depth)
• Use only structural-grade timber treated for ground contact (C24 or C16 at minimum), or composite decking with a steel subframe

What to avoid:

Do not place a full hot tub on an existing domestic deck without first having a structural assessment. Do not use decking boards as the bearing surface directly beneath the tub — the stainless steel feet will concentrate the load onto just a few boards. Build or fit a spreader plate or solid timber pads beneath each support point.

Timber decks also require more maintenance over time and are more susceptible to rot in persistently damp areas. A timber base beneath the tub itself — rather than stainless steel — is one of the leading causes of premature deterioration in cheaper hot tub models. This is precisely why Bauqua uses a stainless steel structural platform: it eliminates this vulnerability entirely.

Step Three: Drainage Planning

Drainage is the aspect of hot tub installation that buyers most often overlook, and the one that creates the most problems afterwards. You need to think about two distinct drainage challenges.

Draining the Tub

A standard Amber 225 holds approximately 1,600 litres of water. If you are using the tub without the antifrost filtration system, you will be changing this water every few days. With the filtration system, you will still drain and refill roughly once a month. Each time, you need somewhere for that water to go.

Your options are:

Surface drainage to a soakaway or garden — the simplest solution. Gravity-drain the tub through a hose to a lawn area or a planted border. The water is clean enough after treatment to water most garden plants without harm, though high chlorine levels can affect sensitive plants. If your garden slopes away from the tub location, this is by far the easiest approach.

Connection to a surface water drain — if there is a garden drain or channel nearby, you can run a pipe from the tub drain point to it. Confirm with your local authority whether treated hot tub water can discharge to a surface drain in your area — rules vary by country and municipality.

Soakaway pit — if neither of the above is convenient, a small soakaway (a rubble-filled pit approximately 1m × 1m × 1m) sited at least 5 metres from the house foundations and 2.5 metres from any boundary will absorb the drain water gradually. This is a simple, low-cost solution for gardens without convenient drainage.

What you should never do is drain 1,600 litres of chemically treated water into a confined area with no outlet — it will saturate the ground, potentially damage planting, and in some cases cause structural issues if it migrates towards the house.

Surface Water Drainage Around the Tub

The area around a hot tub gets wet constantly — from people climbing in and out, from the tub being filled, from rain, and from the steam that condenses on surrounding surfaces. If this water has nowhere to go, it will pool, freeze in winter, and over time damage your foundation surface.

Build a slight fall (1–2%) away from the tub on all sides when constructing your foundation. If you are using a gravel-and-slab approach, the gaps between slabs allow water to drain naturally. If you are pouring concrete, include a drainage channel or gully at the low edge of the slab.

Step Four: Access for Delivery and Installation

This is a practical detail that causes genuine problems if it is not considered in advance. Hot tubs are large, heavy items — the Amber 225 arrives in packaging that requires a clear, firm path from the delivery vehicle to the installation point.

Before your delivery date:

• Measure all access points — gates, side passages, and any gaps between buildings. The tub packaging typically requires a minimum clear width of 120 cm
• Check overhead clearance through any access routes — the packaged height can reach 240 cm
• Ensure the path is firm — delivery teams use trolleys or roller boards, which need a hard surface. Soft lawn, deep gravel, or steep inclines require advance planning. In some cases a small crane or telehandler may be necessary, which can usually be arranged in advance
• Have your foundation fully complete and cured before the delivery date — placing a tub on wet concrete is a common mistake that forces unnecessary delays

Step Five: Electrical Preparation (If Required)

The wood-fired heating system operates entirely without electricity. However, if you plan to use the hydromassage, LED lighting, or the antifrost and filtration system — all of which are highly recommended — you will need a 230V single-phase supply with a 16A fuse run to the tub location.

This work must be carried out by a qualified electrician. The installation should include:

• A weatherproof outdoor socket or hardwired connection point positioned close to the tub but away from splashing
• An RCD (Residual Current Device) protecting the circuit — this is a legal requirement in most European countries for outdoor electrical installations
• A cable buried to the appropriate depth (typically 500–600 mm under paving, 750 mm under lawns in most EU countries) and protected with conduit

Have your electrician complete the installation before the tub arrives so you can connect and test all functions on the day of delivery.

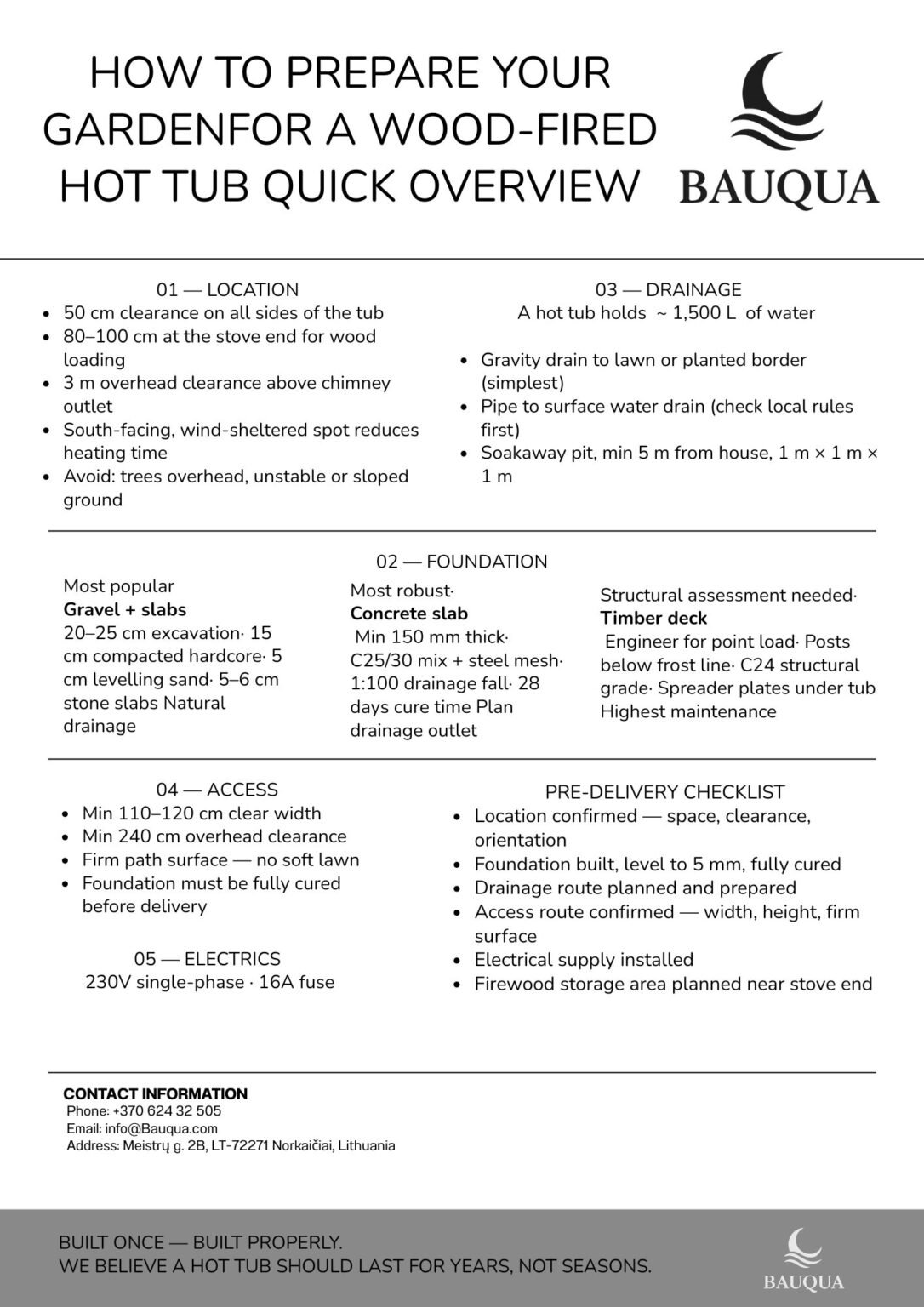

Preparation Checklist

Before your tub is delivered, confirm that each of the following is in place:

• Location marked and approved — adequate space, clearance, and orientation
• Foundation fully constructed and level (within 5 mm)
• Foundation fully cured (allow 28 days for concrete)
• Drainage route planned and prepared
• Access route confirmed — width, height, and surface
• Electrical supply installed if using accessories
• Firewood storage area planned (keep wood dry and close to the stove end)
